DZB-A-025

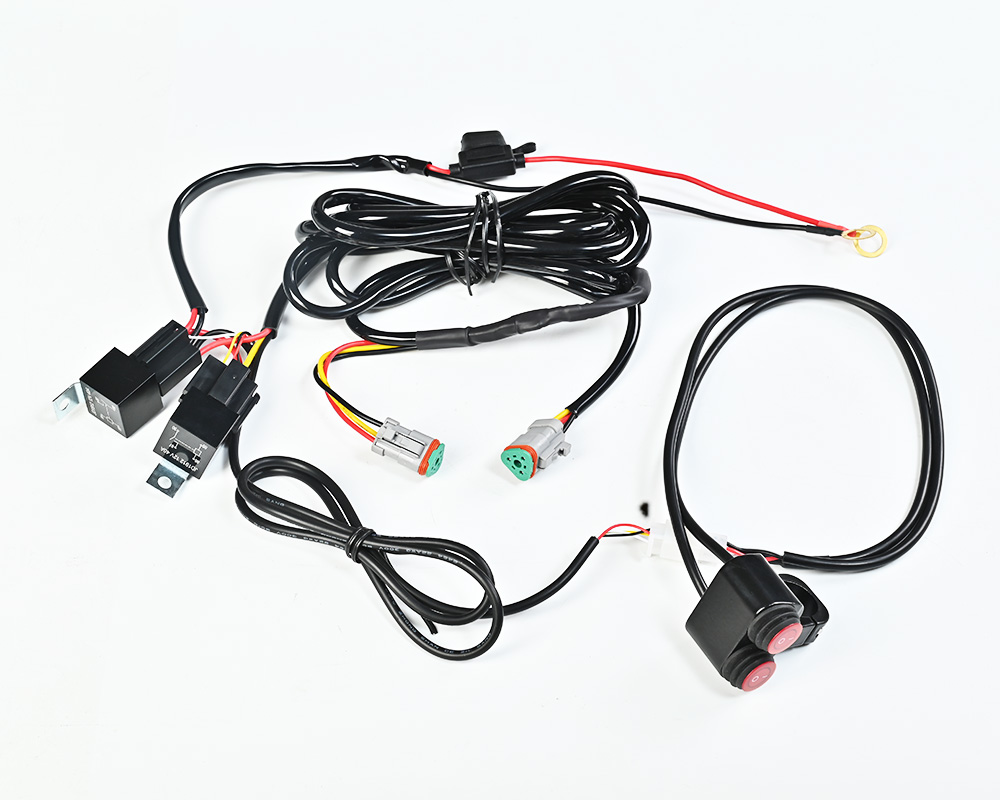

• One-to-two dual switch wire harness, mainly suitable for car work lights, long strip lights and fog lights.

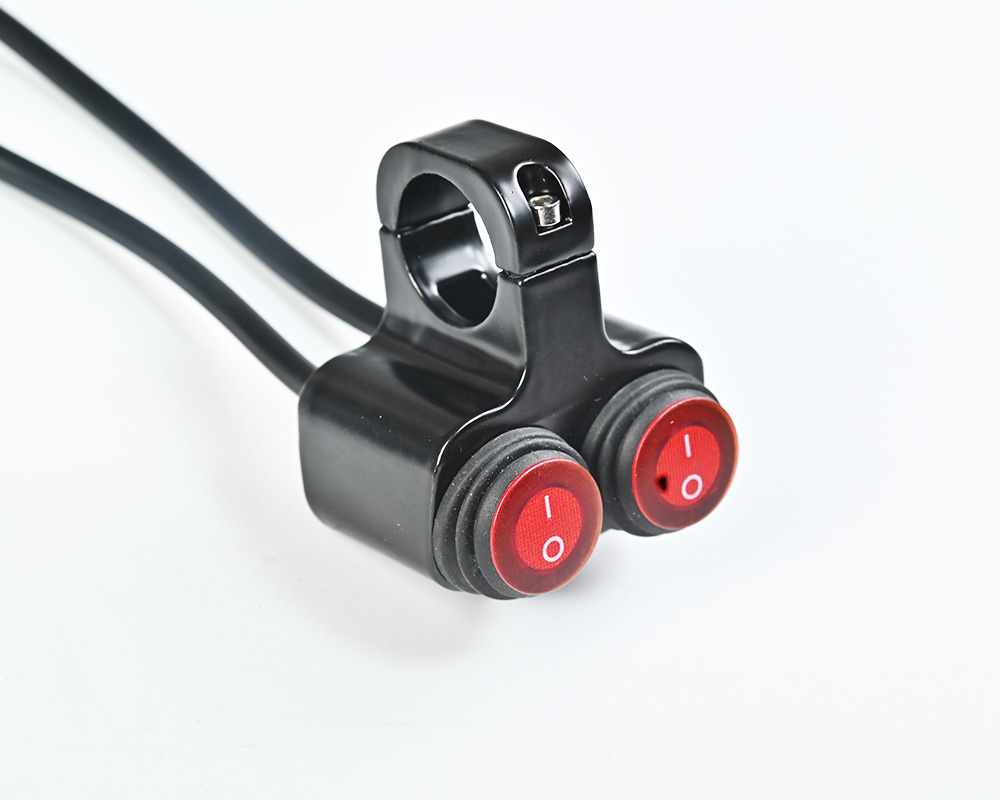

• The two switches control the two lights respectively.
• The wire uses PVC insulation, with a temperature resistance of 105°C and a voltage resistance of 600V.
• The PVC insulation of the wire has the characteristics of alkali resistance, oil resistance, anti-fog, environmental protection and flame retardancy.
• The wire conductor uses a multi-strand copper wire core.

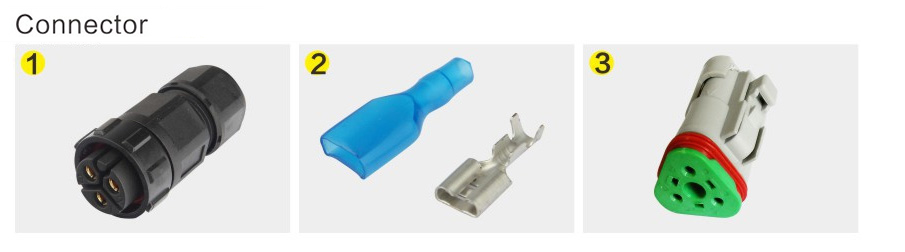

Item NO. Material of wireshuck Inputlne Inputlne coppercore Beclonalarea Output line Length of output Ine Output lne coppercore sectlonalarea Voltage Connector Length control switch Relay(60A/40A) Fuse Power
DZB-A-025-001 PVC 12# 3 12# 3M 3 12/24 ①②③ 3M 40A(12V/24V) 30A ≤320W
DZB-A-025-002 PVC 12# 3 12# 2.5M 3 12/24 ①②③ 3M 40A(12V/24V) 30A ≤320W
DZB-A-025-003 PVC 12# 3 12# 2M 3 12/24 ①②③ 3M 40A(12V/24V) 30A ≤320W
DZB-A-025-004 PVC 14# 2 14# 3M 2 12/24 ①②③ 3M 40A(12V/24V) 25A ≤240W
DZB-A-025-005 PVC 14# 2 14# 2.5M 2 12/24 ①②③ 3M 40A(12V/24V) 25A ≤240W
DZB-A-025-006 PVC 14# 2 14# 2M 2 12/24 ①②③ 3M 40A(12V/24V) 25A ≤240W
DZB-A-025-007 PVC 16# 1.3 16# 3M 1.3 12/24 ①②③ 3M 40A(12V/24V) 15A ≤160W
DZB-A-025-008 PVC 16# 1.3 16# 2.5M 1.3 12/24 ①②③ 3M 40A(12V/24V) 15A ≤160W
DZB-A-025-009 PVC 16# 1.3 16# 2M 1.3 12/24 ①②③ 3M 40A(12V/24V) 15A ≤160W
DZB-A-025-010 PVC 18# 0.65 18# 3M 0.65 12/24 ①②③ 3M 40A(12V/24V) 10A ≤80W
DZB-A-025-011 PVC 18# 0.65 18# 2.5M 0.65 12/24 ①②③ 3M 40A(12V/24V) 10A ≤80W
DZB-A-025-012 PVC 18# 0.65 18# 2M 0.65 12/24 ①②③ 3M 40A(12V/24V) 10A ≤80W
