DZB-A-021-

DZB-A-021

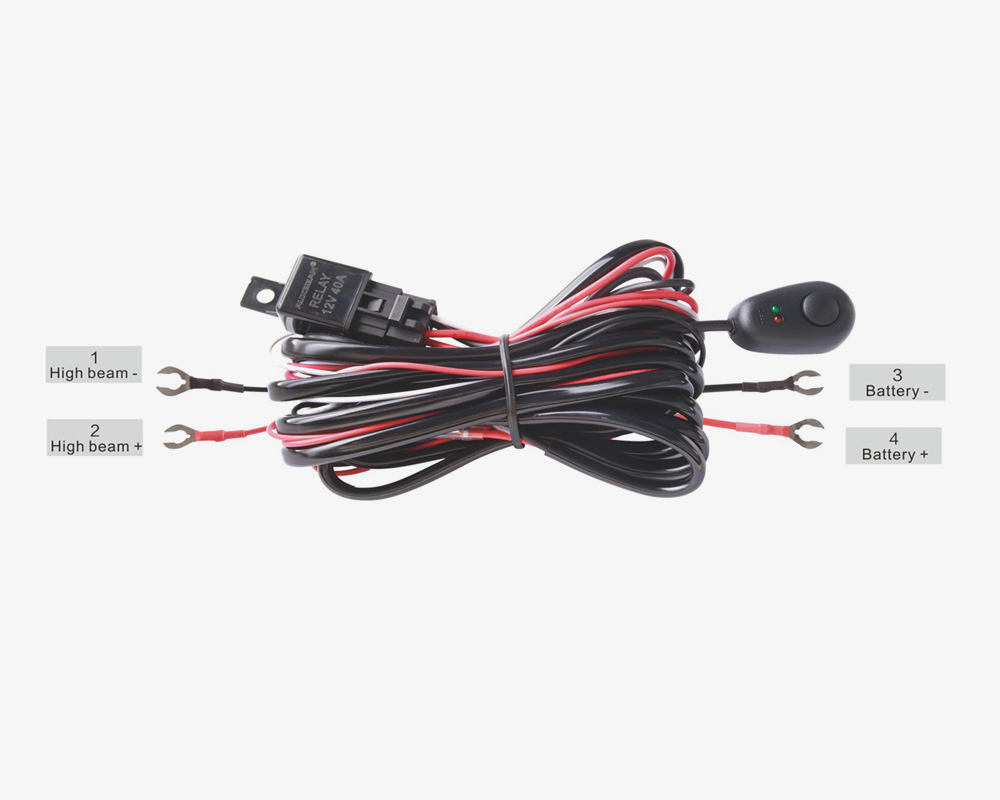

• Australian special carLED light wire harness
• The wire harnes is designed in accordance with Australian laws and regulations. 1 and 2 respectively connect the negative and positive poles of the original car lights. When the original car lights are turnedon, the line group can control the installed lights.
• Wire used PVC insulation shuck, temperature resistance 105℃ withstand voltage 600V
• PVC insulated wire with anti-alkali, oil resistance, mould proof environmental protection, inflaming retarding and other characteristics
• Wire conductor uses multi-strand copper wire

Item NO.

Material of wireshuck

Inputlne

Inputlne coppercore Beclonalarea

Output line

Length of output Ine

Output lne coppercore sectlonalarea

Voltage

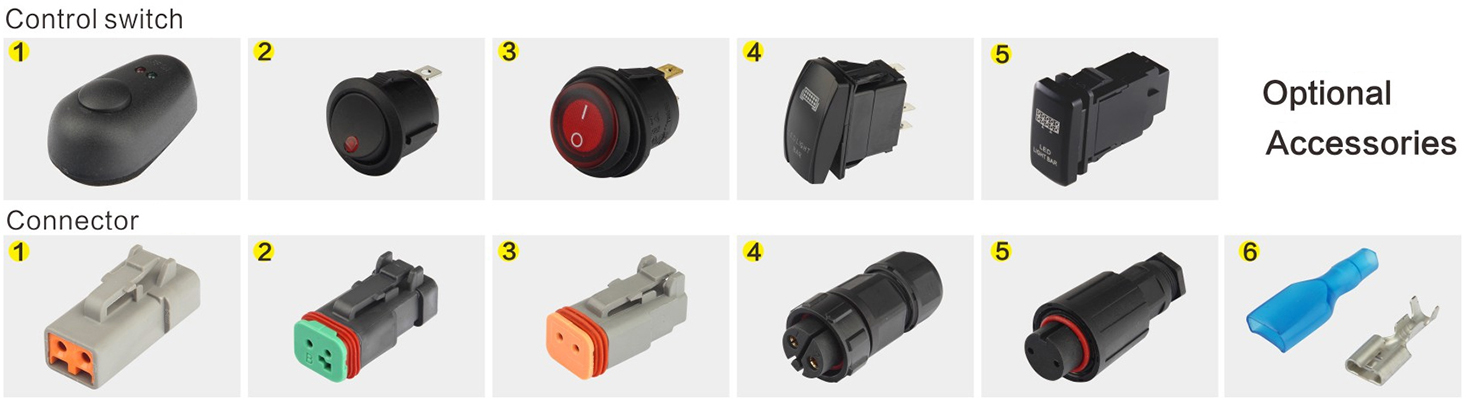

Connector

Control switch

Length control switch

Relay（60A/40A）

Fuse

Power

DZB-A-021-001

PVC

12#

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

30A

≤320W

DZB-A-021-002

PVC

12#

2.5M

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

30A

≤320W

DZB-A-021-003

PVC

12#

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

30A

≤320W

DZB-A-021-004

PVC

14#

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

25A

≤240W

DZB-A-021-005

PVC

14#

2.5M

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

25A

≤240W

DZB-A-021-006

PVC

14#

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

25A

≤240W

DZB-A-021-007

PVC

16#

1.3

16#

1.3

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

15A

≤160W

DZB-A-021-008

PVC

16#

1.3

16#

2.5M

1.3

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

15A

≤160W

DZB-A-021-009

PVC

16#

1.3

16#

1.3

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

15A

≤160W

DZB-A-021-010

PVC

18#

0.65

18#

0.65

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

10A

≤80W

DZB-A-021-011

PVC

18#

0.65

18#

2.5M

0.65

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

10A

≤80W

DZB-A-021-012

PVC

18#

0.65

18#

0.65

12/24

①②③④⑤⑥

①②③④⑥

40A(12V/24V)

10A

≤80W
