DZB-A-013

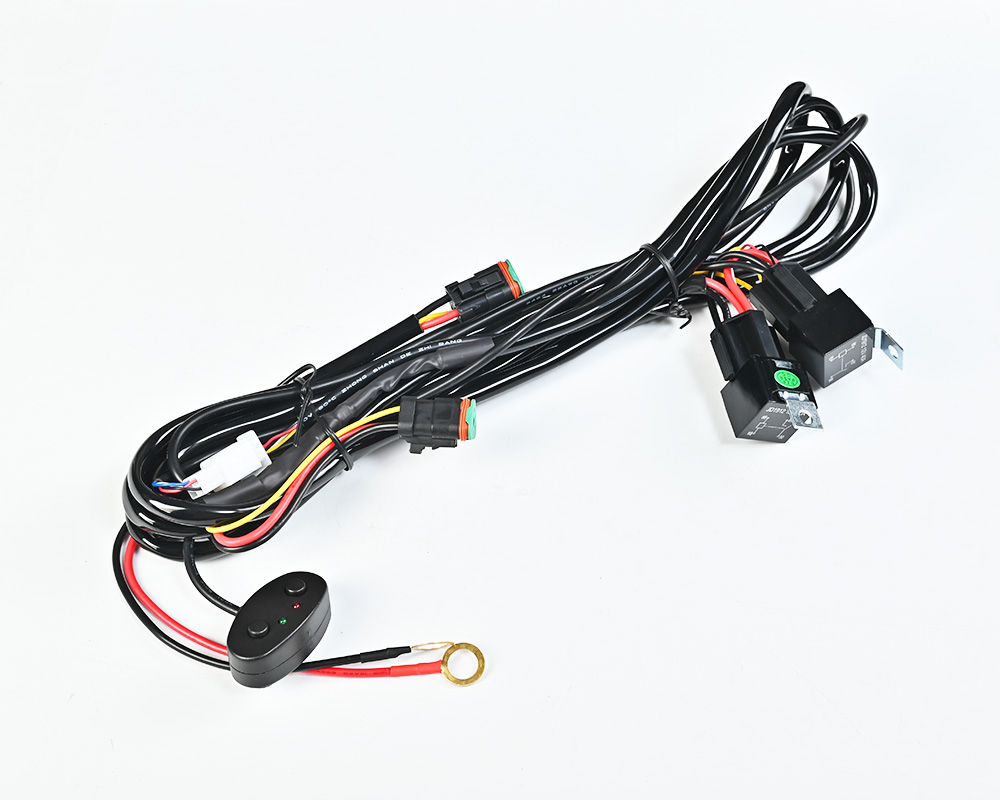

• Dual control switch car LED light wire set,mainly suitable for car work lights with flashing mode selection, strip lights and fog lights.

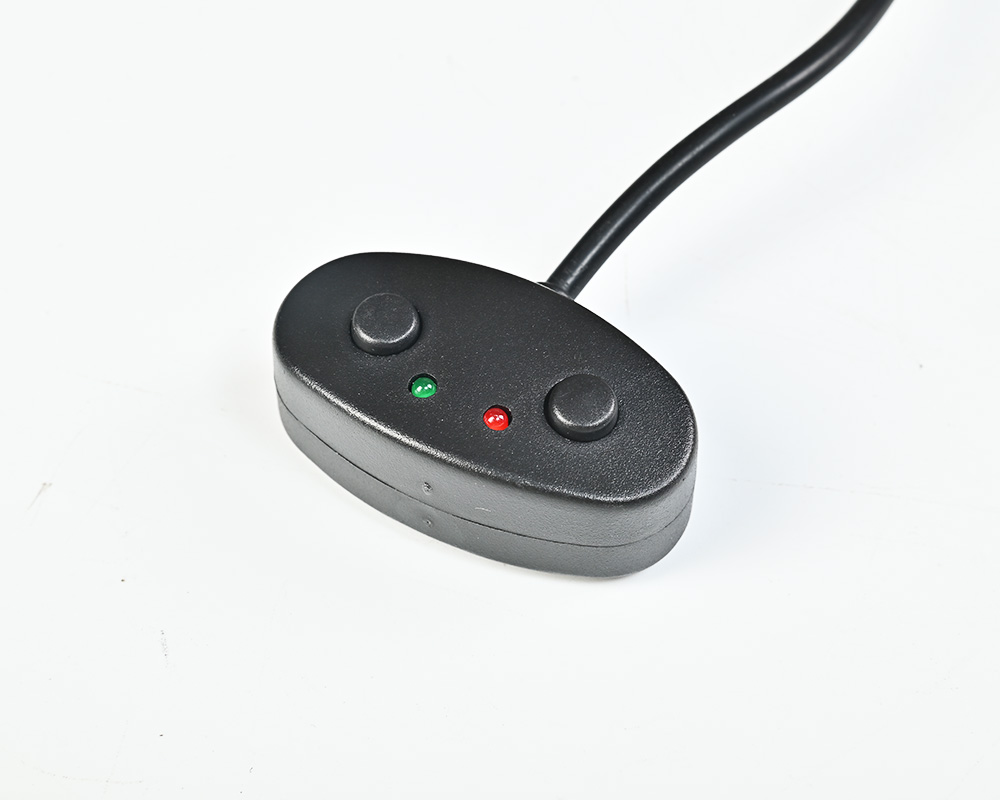

• The ON/OFF button turns the light on and off, and the MODE button selects the flashing mode.
• This cable set is only suitable for lights with a flashing mode selection function.
• The wire uses PVC insulation, with a temperature resistance of 105°C and a voltage resistance of 600V.
• The PVC insulation of the wire has the characteristics of alkali resistance, oil resistance, anti-fog, environmental protection and flame retardancy.
• The wire conductor uses a multi-strand copper wire core.

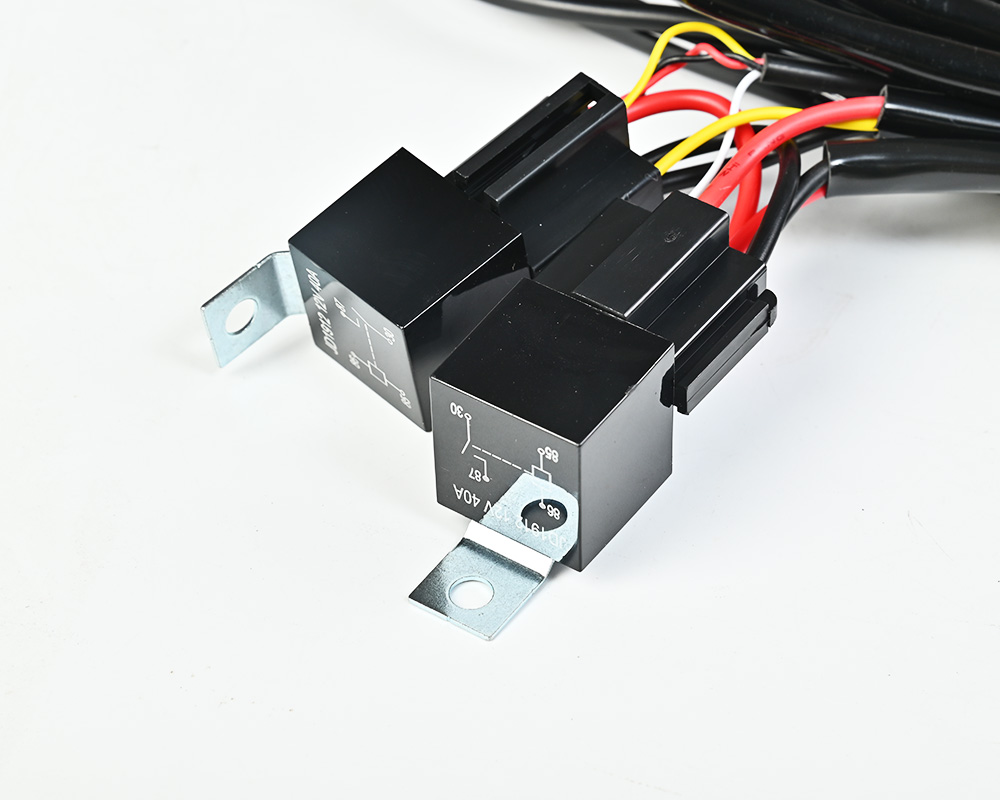

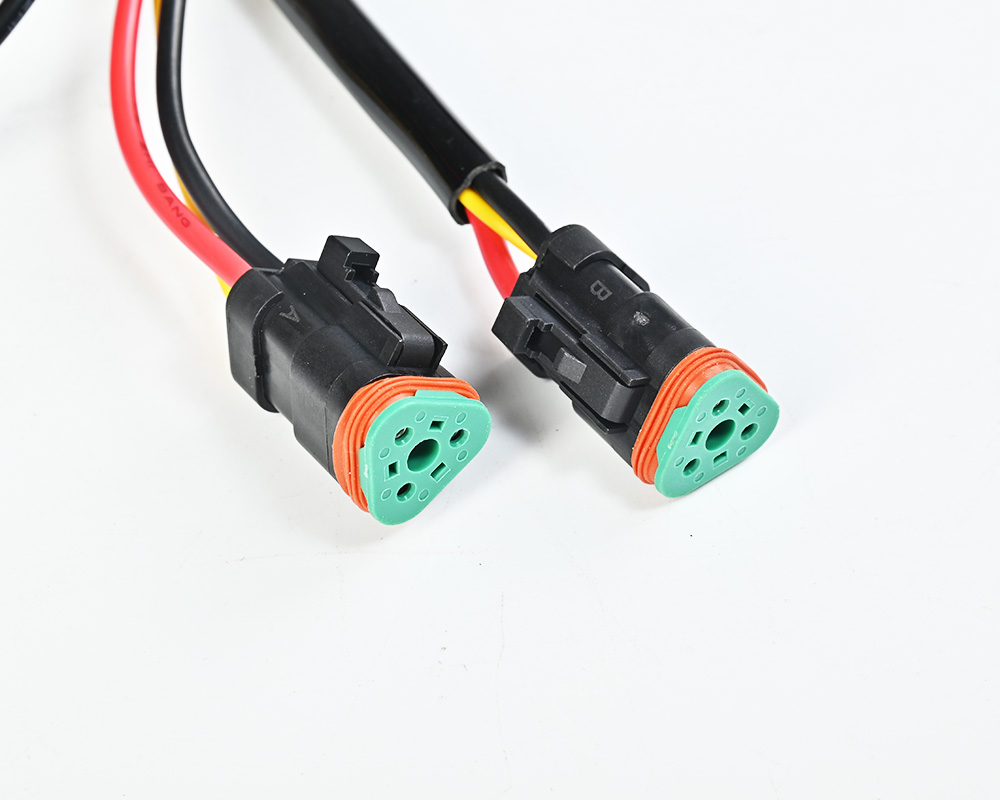

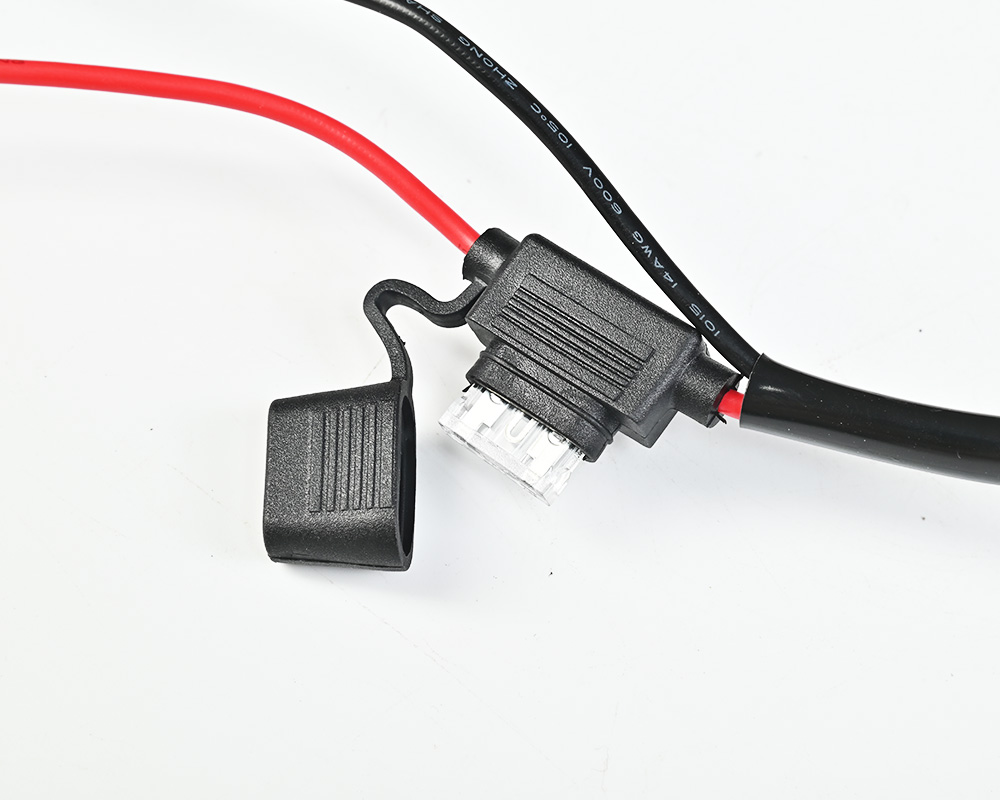

Item NO. Material of wireshuck Inputlne Inputlne coppercore Beclonalarea Output line Length of output Ine Output lne coppercore sectlonalarea Voltage Connector Control switch Length control switch Relay(60A/40A) Fuse Power
DZB-A-013-001 PVC 12# 3 12# 3M 3 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 30A ≤320W
DZB-A-013-002 PVC 12# 3 12# 2.5M 3 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 30A ≤320W
DZB-A-013-003 PVC 12# 3 12# 2M 3 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 30A ≤320W
DZB-A-013-004 PVC 14# 2 14# 3M 2 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 25A ≤240W
DZB-A-013-005 PVC 14# 2 14# 2.5M 2 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 25A ≤240W
DZB-A-013-006 PVC 14# 2 14# 2M 2 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 25A ≤240W
DZB-A-013-007 PVC 16# 1.3 16# 3M 1.3 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 15A ≤160W
DZB-A-013-008 PVC 16# 1.3 16# 2.5M 1.3 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 15A ≤160W
DZB-A-013-009 PVC 16# 1.3 16# 2M 1.3 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 15A ≤160W
DZB-A-013-010 PVC 18# 0.65 18# 3M 0.65 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 10A ≤80W
DZB-A-013-011 PVC 18# 0.65 18# 2.5M 0.65 12/24 ①②③④⑤⑥ ①②③④⑤ 3M 40A(12V/24V) 10A ≤80W
DZB-A-013-012 PVC 18# 0.65 18# 2M 0.65 12/24 ①②③④⑤⑥ ①②③④⑥ 3M 40A(12V/24V) 10A ≤80W
