DZB-A-014-

DZB-A-014

• One-to-two wire harness with two LED lights, Suitable for automotive work lights, light bars and fog lights.
• The wire uses PVC insulation, with a temperature resistance of 105°C and a voltage resistance of 600V.
• The PVC insulation of the wire has the characteristics of alkali resistance, oil resistance, anti-fog, environmental protection and flame retardancy.
• The wire conductor uses a multi-strand copper wire core.

Item NO.

Material of wireshuck

Inputlne

Inputlne coppercore Beclonalarea

Output line

Length of output Ine

Output lne coppercore sectlonalarea

Voltage

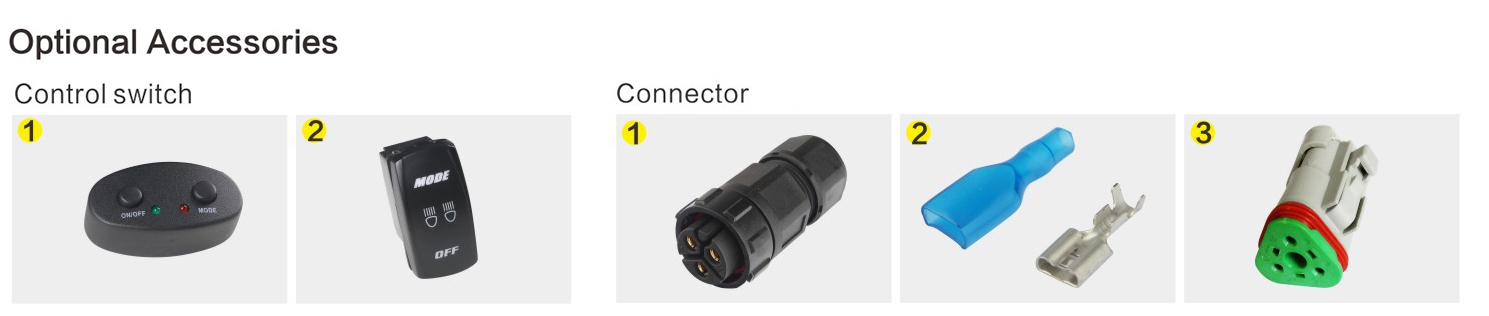

Connector

Control switch

Length control switch

Relay（60A/40A）

Fuse

Power

DZB-A-014-001

PVC

12#

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

30A

≤320W

DZB-A-014-002

PVC

12#

2.5M

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

30A

≤320W

DZB-A-014-003

PVC

12#

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

30A

≤320W

DZB-A-014-004

PVC

14#

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

25A

≤240W

DZB-A-014-005

PVC

14#

2.5M

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

25A

≤240W

DZB-A-014-006

PVC

14#

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

25A

≤240W

DZB-A-014-007

PVC

16#

1.3

16#

1.3

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

15A

≤160W

DZB-A-014-008

PVC

16#

1.3

16#

2.5M

1.3

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

15A

≤160W

DZB-A-014-009

PVC

16#

1.3

16#

1.3

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

15A

≤160W

DZB-A-014-010

PVC

18#

0.65

18#

0.65

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

10A

≤80W

DZB-A-014-011

PVC

18#

0.65

18#

2.5M

0.65

12/24

①②③④⑤⑥

①②③④⑤

40A(12V/24V)

10A

≤80W

DZB-A-014-012

PVC

18#

0.65

18#

0.65

12/24

①②③④⑤⑥

①②③④⑥

40A(12V/24V)

10A

≤80W
